Safety Nets

Gold Line

System S

Our line of nets without knots, manufactured from high tenacity polypropylene, represent a new concept in netting and has been made possible by the application of the highest technologies applied to the manufacture of safety netting.

These nets are manufactured according to the EN 1263-1 Standard and are outstanding due to the following attributes.

Advantages of Polypropylene


General Characteristics

Safety net EN 1263-1.

Use: Horizontal protection (building shafts, industrial warehouses, bridges,etc.).

With 30 kN border rope.

Class A2 (Minimum breaking energy 2.3 kJ).

Dimensions: As necessary (more than 35 square metres).

Safety Net

Net: With mesh dimensions of 100x100 mm. Manufactured in High Tenacity Polypropylene with anti-solar treatment or in High Tenacity Polyamide.

Rope/trial mesh: Lodged in the safety net to determine the deterioration due to aging.

Border Rope

Passed through the exterior meshes of the net and tested in accordance with the requisites indicated in the UNE EN 1263-1 standard.

Minimum breaking load 30kN.



Tying Rope

Objective: Attach the net to the structure of the work.

Minimum breaking load: 30 kN or 15 kN (double strand).

Joining or Sewing Rope

Objective: Joining together of nets.

Approx. Diameter: 6 mm.

Minimum breaking load: 7.5 kN.

Other Components

Steel cables: Minimum break load: 50 kN.

Carabiners: Minimum break load: 20 kN.

Fastening hooks.

“Safety isn't expensive, it's priceless”

Safety Nets

Product, Mounting, and Positioning information is available below.

Get a Quote

System S Safety Net Product Information

Raw Material - High tenacity polypropylene

Mesh - 100mm x 100mm

Dimensions - as required, more than 35 m2

Density - 0.91

Safety Net 5mm White Knotless

Diameter: 5mm

Material: High tenacity propylene without knots

Colour: White

Safety Net 5mm Blue Knotless

Diameter: 5mm

Material: High tenacity propylene without knots

Colour: Blue

Safety Net 5mm Green Knotless

Diameter: 5mm

Material: High tenacity propylene without knots

Colour: Green

Safety Net 5mm Red Knotless

Diameter: 5mm

Material: High tenacity propylene without knots

Colour: Red

Safety Net 5mm Yellow Knotless

Diameter: 5mm

Material: High tenacity propylene without knots

Colour: Yellow

Safety Net 5mm Orange Knotless

Diameter: 5mm

Material: High tenacity propylene without knots

Colour: Orange

Safety Net 5mm Purple Knotless

Diameter: 5mm

Material: High tenacity propylene without knots

Colour: Purple

Safety Net 5mm Black Knotless

Diameter: 5mm

Material: High tenacity propylene without knots

Colour: Black

Safety Net 4.5mm White Knotted

Diameter: 4.5mm

Material: High tenacity propylene with knots

Colour: White

Safety Net 4mm White Knotless

Diameter: 4mm

Material: High tenacity propylene without knots

Colour: White

Safety Net 4mm Green Knotless

Diameter: 4mm

Material: High tenacity propylene without knots

Colour: Green

Safety Net 4mm Black Knotless

Diameter: 4mm

Material: High tenacity propylene without knots

Colour: Black

Safety Net 3mm White Knotless

Diameter: 3mm

Material: High tenacity propylene without knots

Colour: White

Safety Net 3mm Green Knotless

Diameter: 3mm

Material: High tenacity propylene without knots

Colour: Green

Safety Net 3mm Red Knotless

Diameter: 3mm

Material: High tenacity propylene without knots

Colour: Red

Safety Net 3mm Black Knotless

Diameter: 3mm

Material: High tenacity propylene without knots

Colour: Black

Mounting the System S Safety Net

The safety nets must be installed as close as possible to the level of work.

The working heights Hi and He must not exceed 6 metres (see Figures 1 and 2 below).

In addition to this, the reduced fall height, Hr must not exceed 3 metres (see Figure 1)

If the working area is inclined by more than 20° then
1. The collecting width b will be at least 3 metres, and
2. The distance t between the extreme place of work and the lowest point of the edge of the safety net will not exceed 3 metres (see Figure 2).

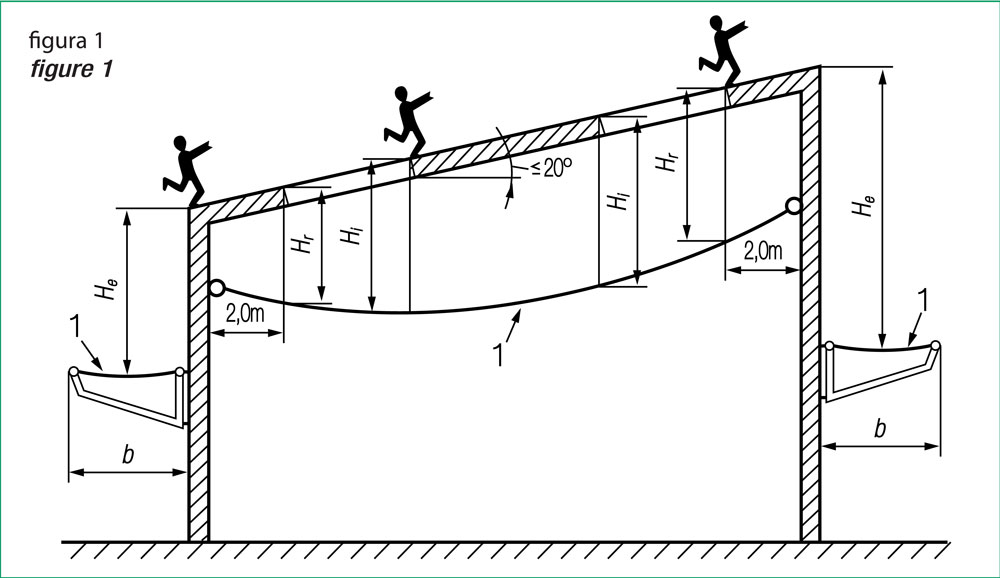

Safety Net Mounting Figure 1

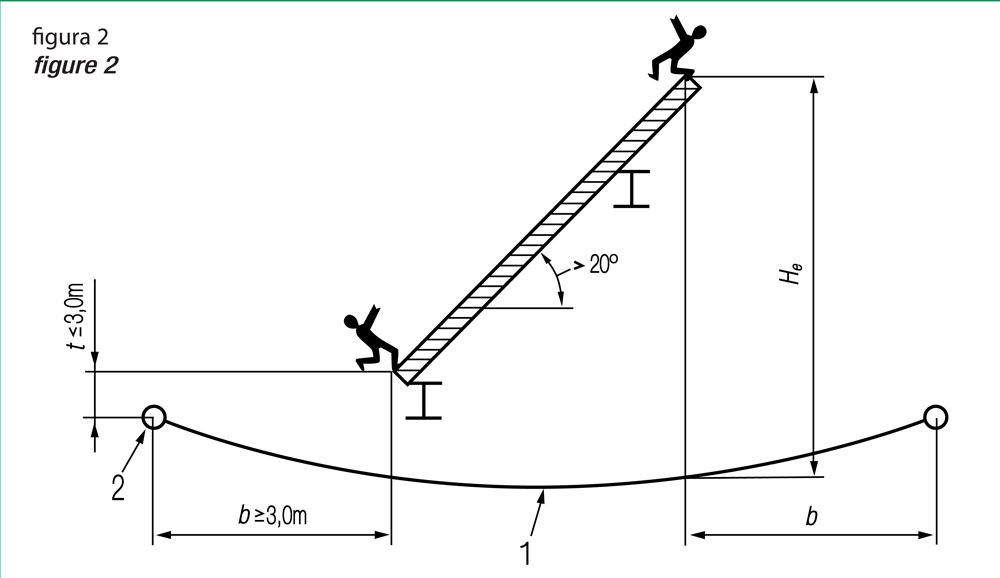

Safety Net Mounting Figure 2

Positioning the System S Safety Net

  1. The installation system for the System S safety nets can be different depending on the dimensions and the areas where they are to be installed. They may be for large shafts in buildings or for protection in industrial warehouses.
  2. The safety nets will be installed at the anchor points by tie ropes capable of resisting the characteristic load.
  3. The distance between the anchor points must be less than 2.5 metres.
  4. If various nets are used, extend the nets on the floor. Sew the nets with joining rope ensuring that there are no gaps of more than 10 mm.
  5. In buildings with large shafts, hooks will be used to fix the net to the edge of the roof, and the border rope will be passed over them.
  6. The hooks should be of galvanised steel and positioned every 50cm.
  7. Pass the border rope through the fastening hooks and close the hooks to prevent the rope from coming out.
  8. Use tying cord to fix the metal structure.
Our Safety nets all comply to BS EN 1263-1 and can be manufactured to a custom size and colour
